Z·01Network Monitoring
Zilk NMS Pro
See every device. Stop every outage.
A unified, AI-augmented network monitoring platform that replaces your legacy NMS, your syslog collector, and your AIOps add-on with one self-hostable stack. Multi-protocol polling, live streaming dashboards, ML anomaly detection, and compliance automation — with your data staying in your data center.
Who it’s for: Network operations teams replacing a legacy NMS, syslog collector, and AIOps add-on with one self-hostable stack — data staying in their own data center.
The Zilk Difference
Why Zilk NMS Pro
01
Data never leaves your network
Self-hostable and air-gap capable — your monitoring data and credentials never leave your infrastructure, unlike cloud-only SaaS monitoring.
02
One stack, not a toolchain
Combines classic multi-protocol monitoring, configuration management, and ML-driven AIOps in a single stack instead of stitching together separate tools.
03
Anomaly detection you can audit
Anomaly detection is transparent statistics engineers can verify, not an opaque black box.
04
Scales toward millions of devices
Purpose-built time-series architecture scales toward millions of devices where general-purpose web-app databases stall at a few thousand.
Capabilities
What Zilk NMS Pro does
Multi-protocol collection
Polls devices over SNMP v2c/v3, ICMP, and SSH CLI and receives SNMP traps and syslog — no proprietary agents to install.
Live streaming dashboards
Real-time WebSocket dashboards with health heatmaps, topology maps, and per-device streaming charts built on Apache ECharts.
ML anomaly detection
Learns a rolling behavioral baseline per metric and flags statistical deviations, correlating related anomalies into single incidents to cut alert noise.
Browser-based SSH terminal
Fully audit-logged, multi-vendor terminal access using credentials stored in an encrypted vault, so operators never re-enter passwords.

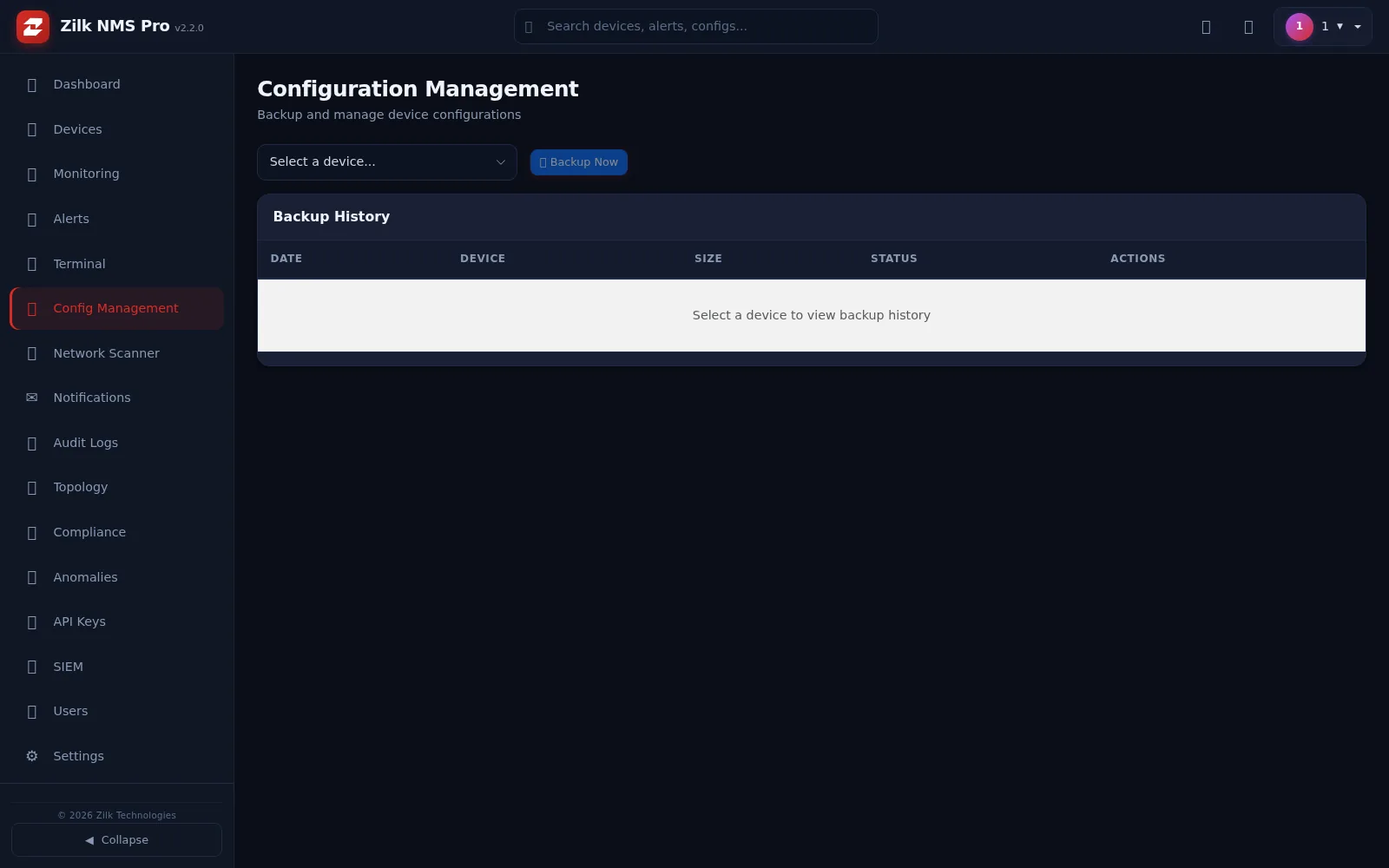

Configuration management
Scheduled config backups over SSH with line-level diffs, change-detection alerts, one-click rollback, and pattern-based compliance policies.
Compliance automation
Automated NIST 800-53, ISO 27001:2022, and SOC 2 Type II assessments with evidence collection and gap analysis.
Alerting & notifications
Custom threshold rules with severity, cooldowns, and delivery to email, Slack, Telegram, generic webhooks, and SIEM systems.
Topology & discovery

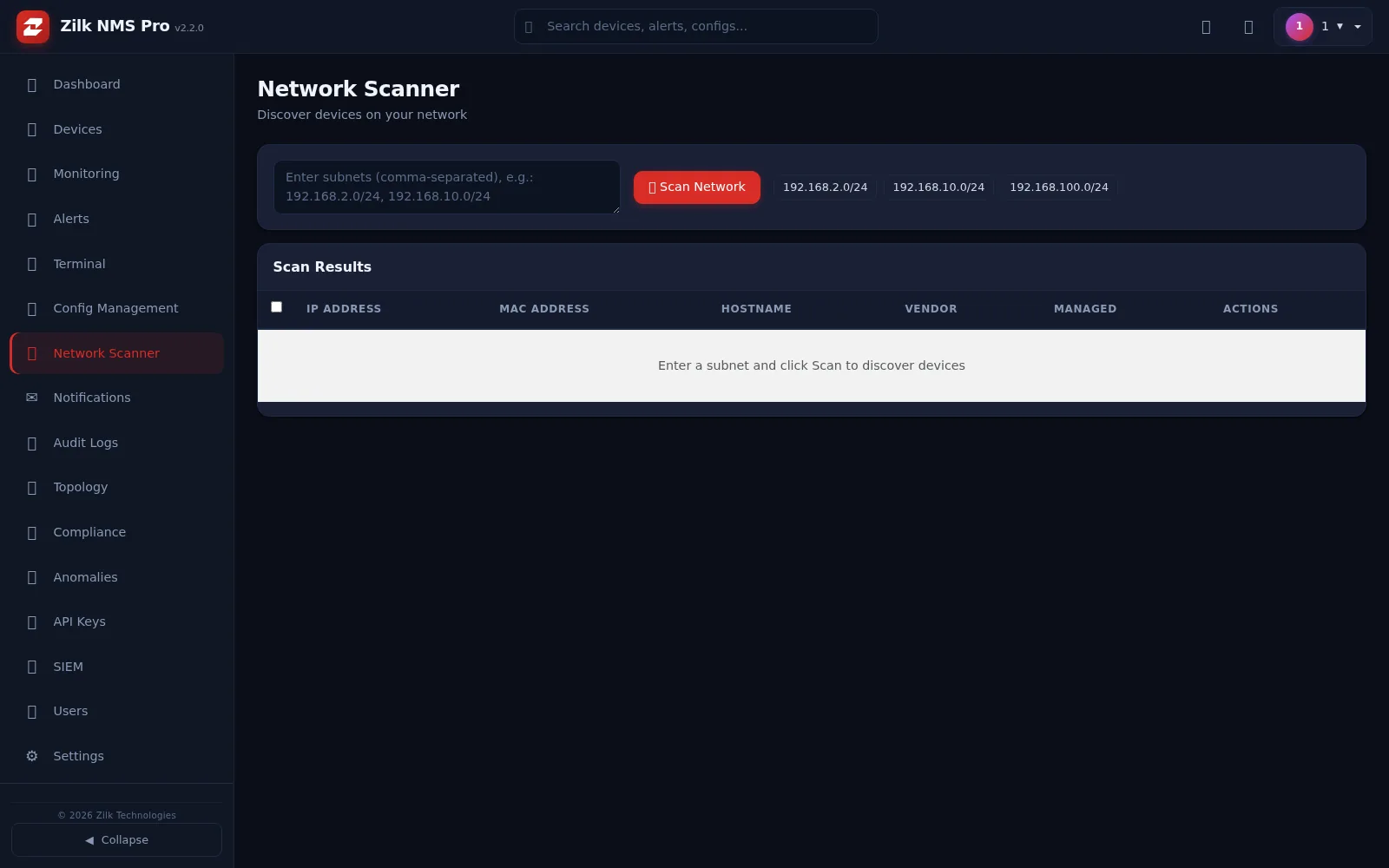

Subnet scanning for automated device onboarding plus LLDP/CDP-based auto-discovery of live layer-2/3 topology maps.
Product tour
Twelve screens. One pane of glass.
Hover to pause, click any frame to inspect it full size.
Feature slideshow
Step through every screen
A slideshow that plays on its own — click any slide to zoom in. Real product, demo data.
Dashboard
Use cases
Where teams put Zilk NMS Pro to work
- 01
A NOC team consolidates monitoring, syslog, and AIOps tooling into one self-hosted platform while keeping all telemetry inside their own data center.
- 02
An enterprise running Cisco, Fortinet, Juniper, Aruba, and Palo Alto gear monitors and troubleshoots every vendor from a single console.
- 03
A managed service provider scales from a small lab to hundreds of thousands of customer devices using Docker Compose and Kubernetes with horizontal pollers.
- 04
A compliance-driven organization produces NIST, ISO 27001, and SOC 2 evidence and gap reports on demand instead of manual audit prep.
- 05
A network team schedules nightly config backups across all border routers and gets alerted the moment an unexpected configuration change appears.
Specifications
Technical specifications
- Deployment
- Docker Compose (single host) or Kubernetes with horizontal pod autoscaling
- Scale
- ~100 to 1M+ devices; ~1,500 devices on a single 8-vCPU/16-GB host
- Protocols
- SNMP v2c/v3, ICMP, SSH CLI, SNMP traps, syslog
- Integrations

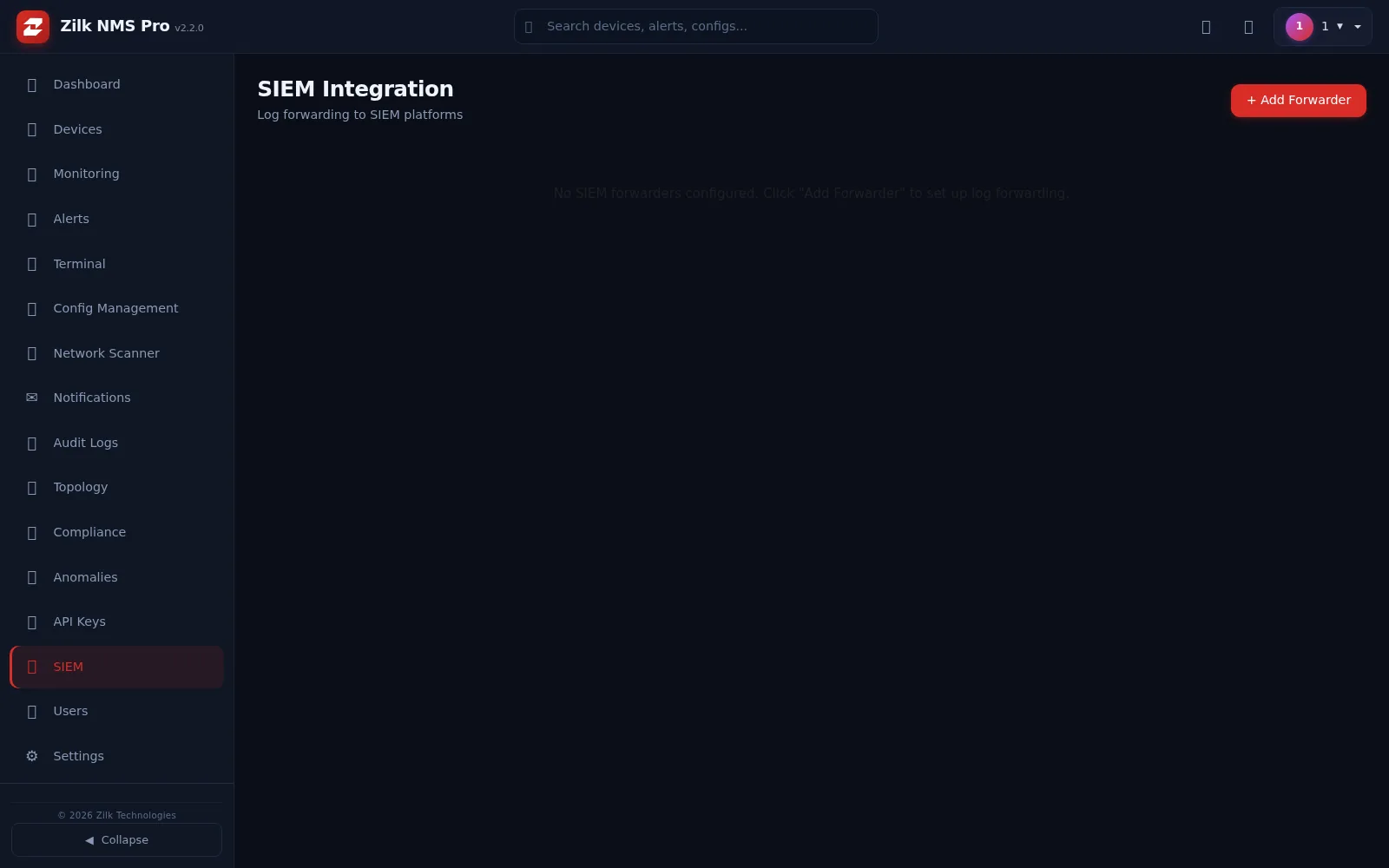

- SIEM forwarding (syslog RFC 5424, Splunk HEC, Elasticsearch, CEF), outbound webhooks, and a full OpenAPI REST API
- Data store
- PostgreSQL 16 / TimescaleDB time-series with continuous aggregates; Redis 7 message bus and cache
- Multi-vendor support
- Cisco (IOS/IOS-XE/NX-OS), Fortinet, Juniper, Aruba, Palo Alto, and generic SNMP devices
- AIOps
- Rolling behavioral baselines with statistical (z-score / Isolation Forest) anomaly detection and cascade-failure correlation
- Security

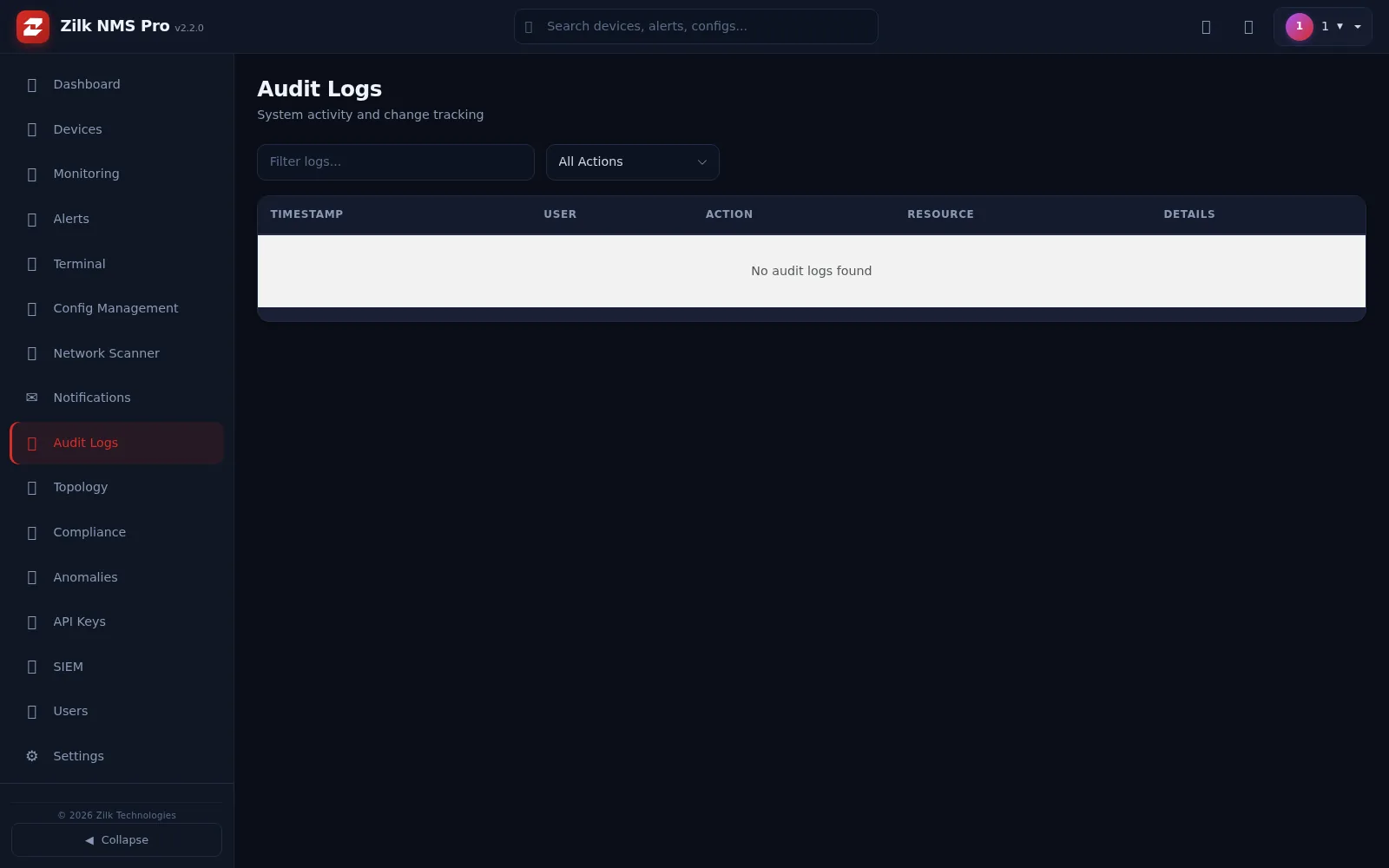

- JWT + refresh tokens, MFA/TOTP, Argon2id hashing, Fernet AES-256 credential vault, RBAC (30+ permissions), SHA-256 hash-chain audit log
- Compliance
- NIST 800-53 Rev 5, ISO 27001:2022, SOC 2 Type II
- License
- Proprietary — Zilk Networks
Part of our Networking & Infrastructure practice
Zilk NMS Pro is built and supported by the same engineers who deliver our 21 Networking & Infrastructure services — design, deployment, and day-2 operations included.
Explore further
Where Zilk NMS Pro fits
Related solutions
Network Modernization
Design, build, and monitor the network — campus, data centre, cloud estate, and the media delivery chain that rides on top of it.
70 services · Networking & Infrastructure · Cloud Services · IPTV & Media Streaming
Quick Services
Scoped, fast-turnaround engagements you can start this week — the shortest path from a question to an answer.
34 services · Quick Services
Related services
- 21services
Networking & Infrastructure
Multi-vendor network design, deployment, and operations including Greenfield/Brownfield projects, data center migration, and configurations
- 19services
Cloud Services
Cloud strategy, migration, deployment, and managed services across AWS, Azure, Google Cloud, and other major platforms
- 54services
Robotics & Industrial Automation
End-to-end industrial automation and robotics engineering — from robot cell design, PLC/SCADA and motion control, and machine vision to IIoT edge connectivity, MES/digital-twin integration, and functional-safety commissioning. We integrate leading platforms (FANUC, ABB, KUKA, Universal Robots, Siemens, Rockwell) into safe, production-ready systems.
- 34services
Quick Services
On-demand, fixed deliverables: Bill of Quantity, HLD, LLD, implementation plans, configuration templates, and Diagrams as a Service (network, system, storage, SLD, passive, connectivity)
The story
From discovery to compliance — five screens
Keep scrolling — the dashboard follows the story.
01 · Dashboard
See every device. Stop every outage.
Every device, its state, and the active alerts on one always-current pane — bandwidth overview, top CPU consumers, recent activity.

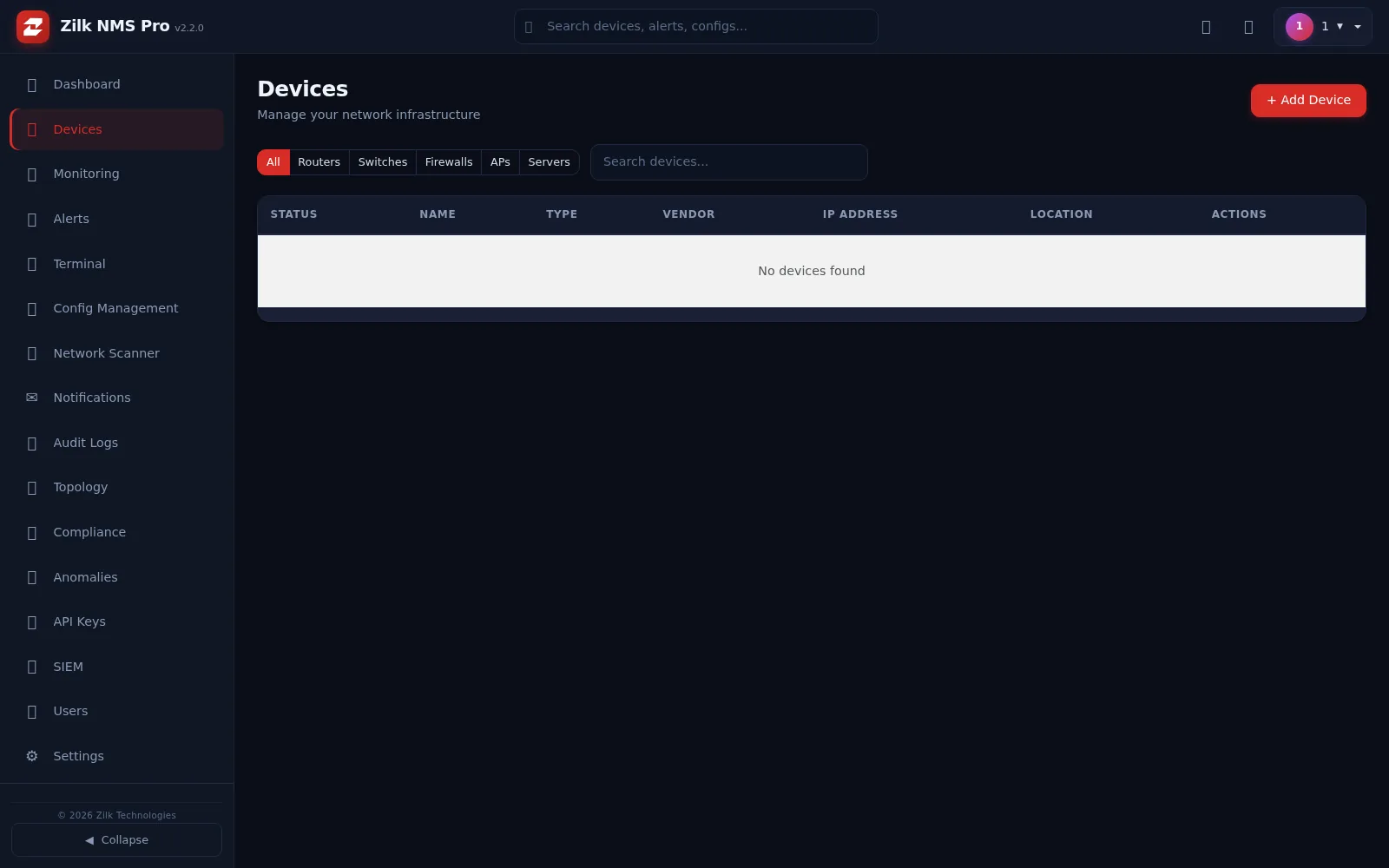

02 · Devices
Multi-protocol collection, no agents
SNMP v2c/v3, ICMP, SSH CLI, and traps bring every vendor in — Cisco, Fortinet, Juniper and more — with no proprietary agents required.

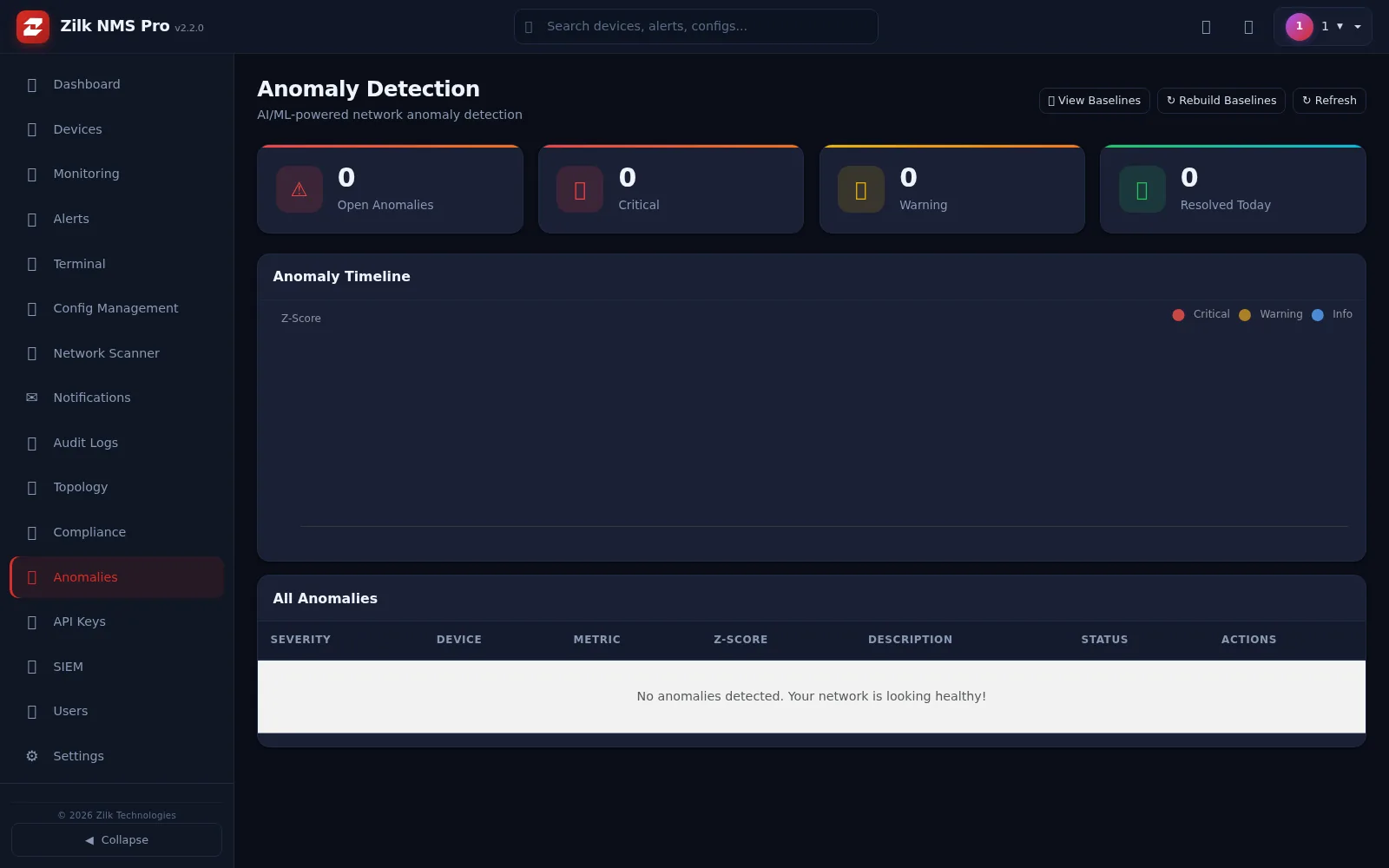

03 · Anomalies
ML alerting that knows what normal looks like
Anomaly detection builds 14-day behavioral baselines and correlates cascade failures, so you chase root causes instead of symptom storms.

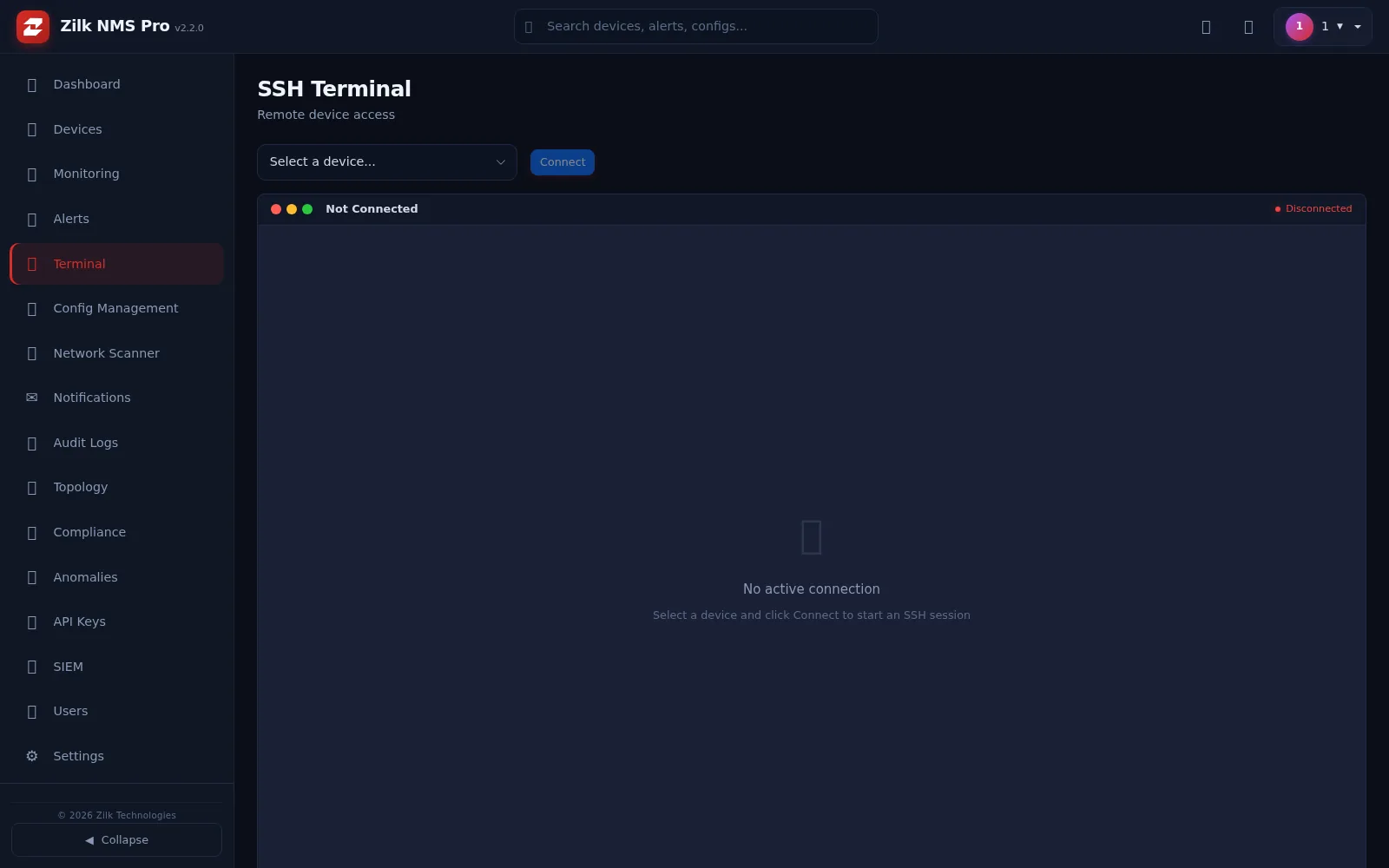

04 · Terminal
A live SSH terminal, in the browser
Encrypted-credential access to Cisco, Fortinet, Juniper, Aruba, and Palo Alto — right where you monitor, not in a separate tool.

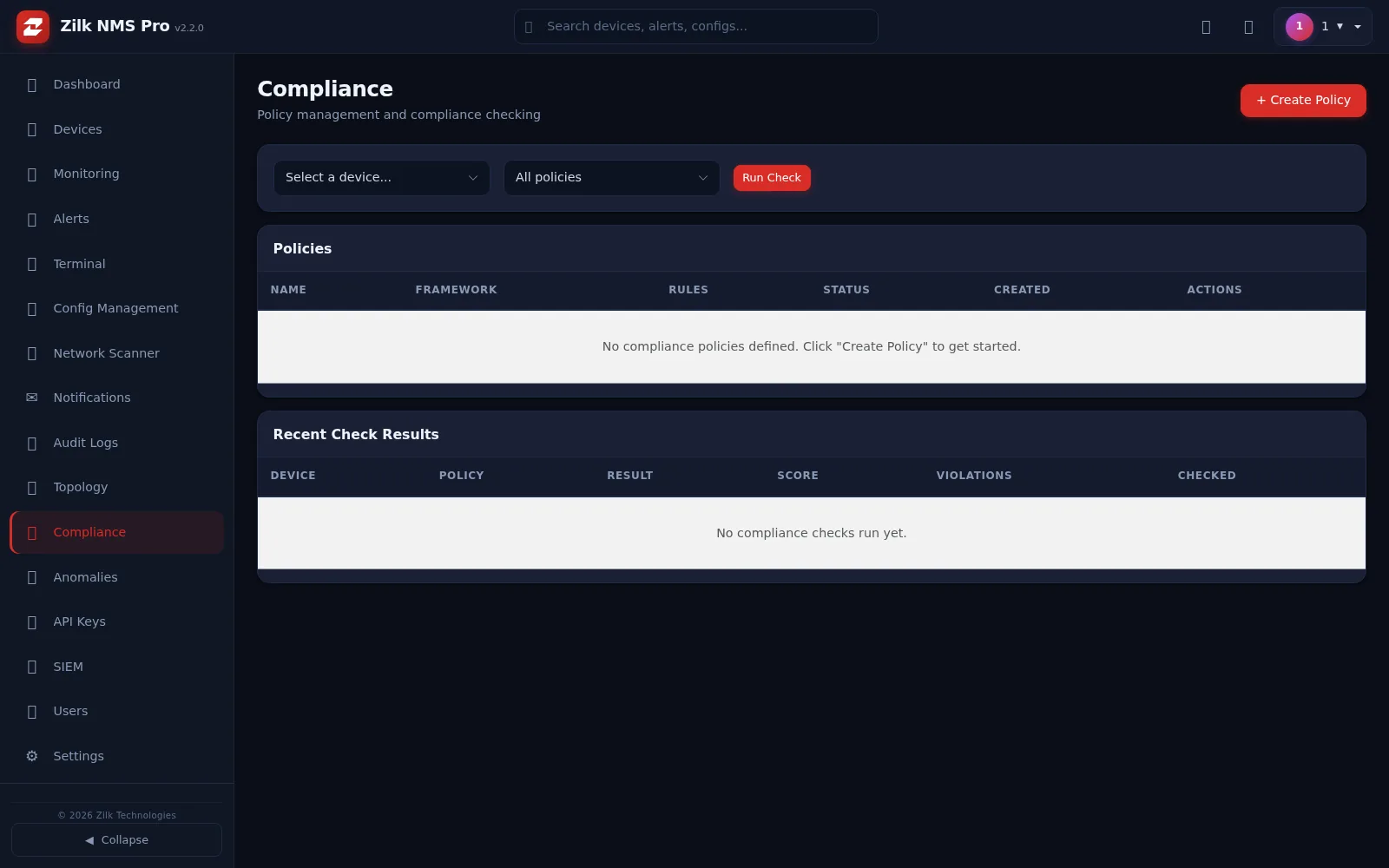

05 · Compliance
Compliance automation, not spreadsheets
Configuration management and automated compliance checks keep the estate audit-ready — with your data staying in your data center.
Pricing
Request pricing for Zilk NMS Pro
Tell us a little about your team and what you need — an engineer replies with pricing, typically within one business day.
Put Zilk NMS Pro to work
See it against your own environment, ask the hard questions, and get a straight answer on fit.
